TPLO surgery in dogs requires more than a single implant or saw. A veterinary team normally evaluates the patient, plans the osteotomy and prepares compatible instruments, implants and surgical equipment for the procedure. TPLO, or tibial plateau leveling osteotomy, is a technique used in the management of canine cranial cruciate ligament disease. The American College of Veterinary Surgeons describes TPLO as a procedure that changes the geometry of the proximal tibia to support stifle stability during weight bearing. The final treatment choice must be made by a qualified veterinary surgeon.
Canine cranial cruciate ligament disease can lead to stifle instability, lameness and progressive joint changes. According to VCA Animal Hospitals, TPLO involves reshaping the tibial plateau so that the stifle can function with reduced dependence on the damaged ligament. Because patient anatomy, bone quality and surgical planning vary, the instruments and implant sizes should be selected for the individual case rather than by dog weight alone.

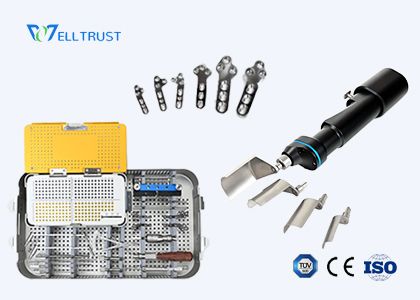

A TPLO saw is used to create the planned curved osteotomy. Well Trust Veterinary lists the T150 TPLO Saw as a device designed for canine orthopedic surgery. Its product information identifies multiple blade sizes and a 0–16,000 cycles-per-minute frequency range. Before ordering, the clinic should confirm the required blade diameter, saw interface, cutting depth, sterilization process and compatibility with the selected surgical technique.
Guides, jigs, drill sleeves and measuring instruments help the surgical team follow the planned osteotomy and fixation steps. Their dimensions and functions must be checked against the relevant instrument set. A complete set should be reviewed to confirm that it includes the guides and accessories required for the surgeon’s preferred workflow.
Drilling may be required for plate and screw fixation. Well Trust Veterinary also provides multifunction power tools, including the E100 Multifunction Drill and Saw. The product page describes functions for bone cutting, reaming, oscillating sawing and screw placement, with different attachments available for small and large bone procedures. Compatibility should be confirmed by model, attachment, connection interface and current product documentation.
A TPLO plate and compatible screws are selected to maintain the planned bone position during healing. Well Trust Veterinary lists Veterinary TPLO Plates and TPLO locking plate surgical sets in 2.0/2.4 mm and 2.7/3.5 mm configurations. The correct choice depends on the dog’s anatomy, plate design, screw diameter, bone quality and the surgeon’s fixation plan. Plate and screw systems from different manufacturers should not be combined without documented compatibility.
| Selection area | Information to confirm |
|---|---|
| Procedure planning | Planned osteotomy, patient anatomy and surgeon technique |
| Cutting equipment | TPLO saw, blade size, interface, speed range and sterilization method |
| Implants | Plate design, screw diameter, hole pattern and available sizes |
| Instrument set | Jigs, guides, drill sleeves, measuring tools and handling instruments |
| Workflow | Compatibility between saw, drill, attachments, implants and sterilization equipment |
Well Trust Veterinary also lists a Veterinary TTA Instrument Kit and TTA Cages. These products relate to tibial tuberosity advancement, which is a different surgical approach from TPLO. They should therefore be evaluated as a separate system rather than treated as interchangeable TPLO components.
TPLO is a tibial plateau leveling osteotomy used in the management of canine cranial cruciate ligament disease. A veterinary surgeon must determine whether the procedure is appropriate for the individual patient.
Depending on the system, a TPLO procedure may require a TPLO saw, compatible blades, jigs or guides, measuring instruments, drills, plates, screws and a dedicated instrument set.
Confirm the dog’s anatomy, planned osteotomy, plate and screw configuration, saw and blade compatibility, instrument set contents, sterilization requirements and current manufacturer documentation.
